2088 RS485 4-20mA Explosion Proof pressure transducer sensor
YUN YI ,we are professional manufacturer that engaged in the fields of pressure measurement instrument. Our company mainly produces pressure transmitter, ceamic pressure transmitter, temperature transmitter. flush disphragm pressure transmitter, smart digital pressure transmitter, wirelss pressure transmitter etc.
Description 2088 RS485 4-20mA Explosion Proof pressure transducer sensor
2088 RS485 4-20mA Explosion Proof pressure transducer sensor is produced with proprietary technology, adopting imported silicon sensitive elements as well as normalized designed circuits and assembling technology to ensure product progressiveness, practical use, and quality stability. This 4-20ma pressure sensor may widely be used for all kinds of application.
High quality china 4-20ma Pressure sensor transmitter using use piezoresistive silicon oil-filled sensor as measurement component. china 4-20ma pressure sensor transmitter with isolated stainless steel diaphragm as signal sensing element, through automatic testing, laser trimming compensating zero and sensitivity in wider temperature range the amplifier circuit is in stainless steel housing, transforming sensor signal into standard output signal.

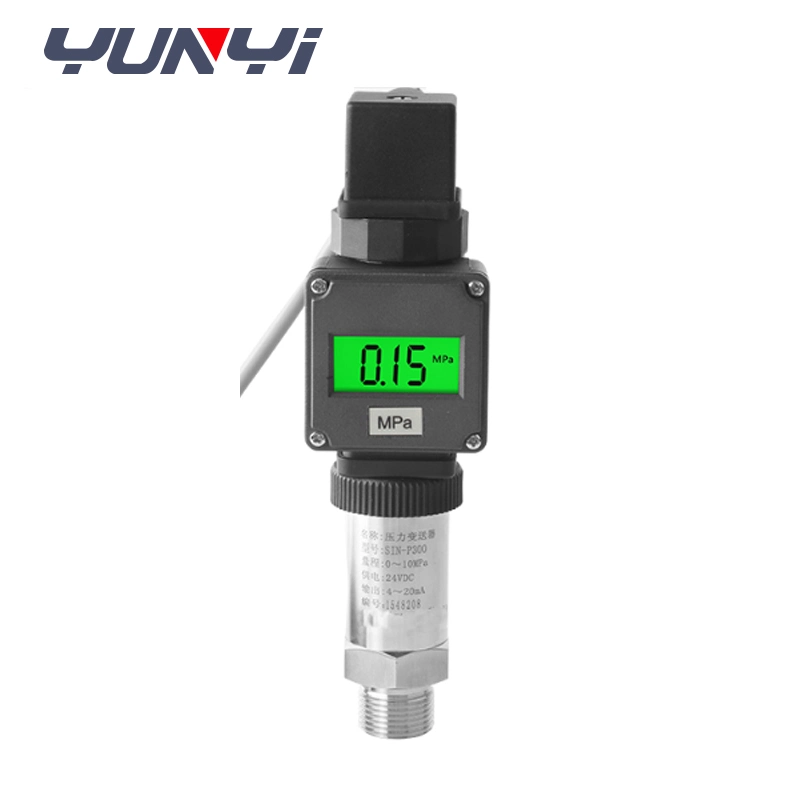

Images 2088 smart pressure transmitter air oil water pressure transmitter
|Pressure Type||gauge (G), absolute (A), sealed gauge (S)|
|Accuracy||0.1%FS, 0.25%FS, 0.5%FS (optional)|
|Output signal||4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)|
|Temp.coefficient of zero||±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)|
|Temp.coefficient of span||±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)|
|Compensated temperature range||-10~+70°C|
|Operating temperature range||-40~+125°C|
|Storage temperature range||-40~+125°C|
|Load resistance||R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)|
|Electrical interface||DIN43650, option 1.5m cable connetion|
|Pressure interface||G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)|
|Material of pressure membrane||316L stainless steel|
|Material of housing||1Cr18Ni9Ti stainless steel|
Test High quality china 4-20ma Pressure sensor transmitter
Applications High quality china 4-20ma Pressure sensor transmitter
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.
Boats&ships and aviation industry
Hydraulic pressure and pneumatic control system
