Analog 4-20ma RS485 output pressure level sensor HPT604
HPT604 is a submersible level transducer suitable for liquid level and depth measurement. It consists of an imported U.S.A MEAS TE silicone core element encased in all 316 stainless steel, hermetically sealed housing make it suitable for immersion in most industrial liquids and oils. 5-10 years design life, the lifelong maintenance for your project escort
You will benefit from Our HPT604 submerisble level transducer?

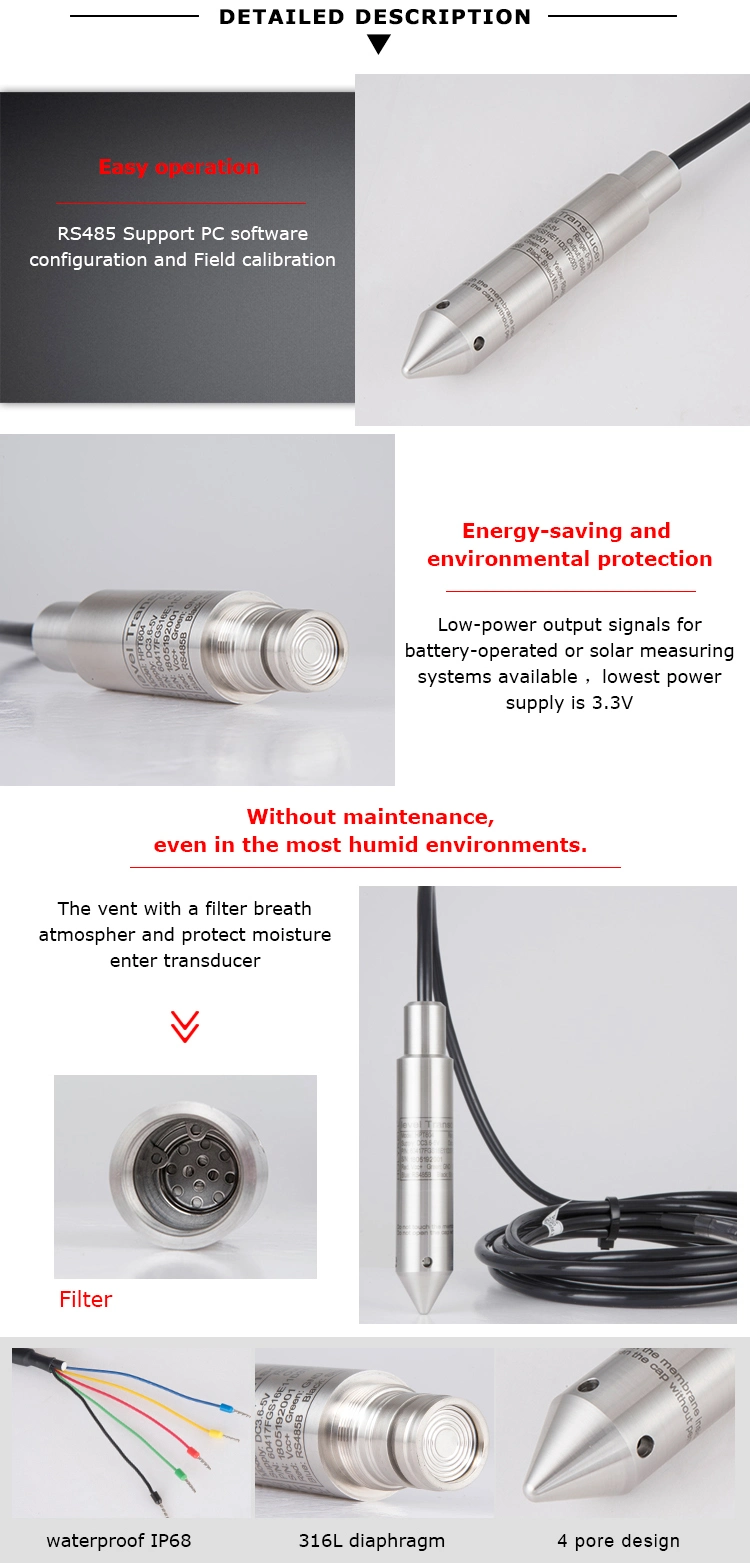

RS485 Support PC software configuration and Field calibration
2.Without maintenance, even in the most humid environments.
The vent with a filter breath atmospher and protect moisture enter transducer
3.Energy-saving and environmental protection
Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V
Double output digital signal and temperature
1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time; Its service life is 2-3 times of similar products.
2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;
Anti-interference is enhanced by 300%, the stability is over 10 years.
3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.
4. Automatic temperature compensation, -40 ~ 85, autocorrection temperature drift.
5. Five layers of seamless and waterproof dustproof connection design, international level IP68;12 mm waterproof and oil-proof cables, the service life is more than 10 years.
Specificate of submersible level transducer
HPT604 submersible level transducer
-30~80 or -40~100(Customized)
Standard:-10~60 or by Customized
Compatible with 316L Stainless Steel
3m PUR cable with vents
9600 (standard), 2400,4800,19200 by customized.
1 start bit, 8 data bits, 1 stop bit
10 points/second to 1 point/50 minutes
20 bit 10ppm
>100M Ω @50V dc
Zero Temp. Drift
Typical: 0.03%FS/, Max: 0.1%FS/
FS Temp. Drift
Typical: 0.002%FS/, Max: 0.1%FS/
≤4 to 10 ms (standard); ≤1 ms (Customized)
ATEX intrinsic safety or ExdIICT6, TUV RoHS and CE Certificate approving
None (standard type); Air conducts withstand voltage 8000V Shell and Cable conduct withstand voltage 4000V. This function is customized.
EN 61326-1:2013; EN 61326-2-3:2013
EN 61000-6-2:2005; EN61000-6-4:2007+A1
PT100, K, J type thermocouple customized
Applications : Lift station monitoring,Tank liquid level,Landfill leachate monitoring
Construction by-pass pumping,Dewatering,Pump control,Slurry tank liquid level
Wastewater,Fuel tank. Fuel tanker
