GC-7890MD Portable GC Testing Equipment/Dissolved Gas chromatography Analyzer
Introduction
GC-7890MD gas chromatograph is a new generation of power system dedicated gas chromatography manufactured by Chongqing TOP Oil Purifier Co., Ltd. for the power industry. The instrument uses advanced computer control system and large-screen Chinese / English display, which is in strict accordance with three detector flow recommended by the national standard GB / T 17623-1998 "Dissolved gas component content in insulating oil by using gas chromatograph method", GB / T7252-2001 " Guide for interpretation of dissolved gases in oil-immersed transformer ". Advanced thermal conductivity amplification technology to increase 10 times of the detection capacity of hydrogen. High-sensitivity micro-current amplifier circuit made the ability of detecting hydrocarbon gases rise to limit. Excellent column system ensures good chromatographic peak shape and the best resolution. Stable gas control system ensures the accuracy and repeatability of the analysis. Instrument uses computer control, keyboard-type operation and LCD screen display, with advantages of high integration of electronic circuits, good reliability, simple operation, long-term operation and so on. The instrument is equipped with a thermal conductivity detector, dual hydrogen flame detector and nickel converter. Seven (or nine) kinds of gas components in oil sample can be achieved with automatic total analysis at a time; The oven is equipped with a rear door automatic cooling system. Each heating zone (the capillary injector incubator, detector incubator, auxiliary incubator, oven thermostat) is separated from each other by a heat insulating material, so that the heat conduction between the heating zones is minimized and the temperature of each heating zone can be independently controlled. The gas flow and pressure control system of instrument is installed inside the instrument gas-line box. The injection system installed at the top of the instrument requires vertical injection. Instrument signal output can be connected to the transformer oil chromatography data processing system, integrator, computer and other peripheral drawing equipment.
Comprehensive index | 1) Dimensions: 565 × 505 × 500mm]; (length × height × width) 2) Packing box dimensions: 730 × 650 × 610 [mm]; (length × height × width) 3) Column spacing size: 150mm 4) Column: two dedicated chromatography column 5) Instrument weight: 65Kg |
Temperature control index | Oven temperature control: 1) Room temperature plus 6 ºC ~ 399 ºC; (in increments of 1 ºC), (set effectively parameter up to 399 ºC, allowing using but not to guarantee the technical index) 2) Temperature fluctuation: no more than ± 0.1 ºC; (ambient temperature change 10 ºC or power supply voltage change 10%). 3) Temperature gradient: ± 1% (temperature range 100 ºC ~ 350 ºC). 4) Program heating step: 7 step 5) Heating rate: 0 ~ 40 ºC / min (set in increments of 0.1 ºC). 6) Cooling rate: not more than 3 min when oven cool from 200 ºC to 100 ºC 7) Time setting: 6000 (min) Thermal conductivity detector temperature control: Room temperature plus 20 ºC ~ 350 ºC (index parameters). (Set parameters: room temperature plus 6 ºC ~ 399 ºC effective, allowing using but not to guarantee the technical index ). Temperature control accuracy: not more than ± 0.1 ºC. The remaining heating zone temperature: Room temperature plus 20 ºC ~ 350 ºC (index parameters). (Set parameters: up to 399 ºC effective, allowing using but not to guarantee the technical index ). Temperature control accuracy: not more than ± 0.2 ºC. |
FID detector | Detection limit:≤8×10-12g/s(n-C16H34) Noise: ≤ 2 × 10-14A(0.02mv) Drift: ≤ 1.5 × 10-13A / 30min(0.15mv/30min) Dynamic linear range: ≥ 107 |
TCD detector | Sensitivity: ≤5000mv.ml/mg(n-C16H34) Noise: ≤2×10-14A (0.02mv) Drift: ≤1.5×10-13A/30min (0.15mv/30min) Dynamic linear range: ≥ 104 |
Application Environment | Ambient temperature: (5 ~ 35) ºC Relative humidity: no more than 85% Power Supply voltage: 220 ± 22V Power supply frequency: 50 ± 0.5Hz. Maximum power consumption: 2500W No Indoor corrosive gases. No strong mechanical vibration on table. No strong electromagnetic interference nearby. No dramatic indoor temperature change. No air convection |
Related Products
1. Water Content Tester TP-2100
2. Digital Karl Fischer Water Content Tester TP-6A
3. Kinematic Viscosity Tester VST-2000
4. Kinematic Viscosity Tester TPV-8
5. Kinematic Viscosity Tester VST-3000
6. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7. Automatic Surface/Interface Tension Tester IT-800
8. Automatic Open Cup Flash Point Tester TPO-3000
9.Closed Cup Flash Point Tester TPC-3000
10.Digital Open Cup Flash Point Tester TPO-100
2. Digital Karl Fischer Water Content Tester TP-6A
3. Kinematic Viscosity Tester VST-2000
4. Kinematic Viscosity Tester TPV-8
5. Kinematic Viscosity Tester VST-3000
6. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
7. Automatic Surface/Interface Tension Tester IT-800
8. Automatic Open Cup Flash Point Tester TPO-3000
9.Closed Cup Flash Point Tester TPC-3000
10.Digital Open Cup Flash Point Tester TPO-100
11.Digital Closed Cup Flash Point Tester TPC-100
12.Cloud Point & Pour Point Tester PT-2000
13.Multi-functional Vibration Tester VBT-2000
14.Automatic Potentiometric Titrator TP668
15.Petroleum Products Density Tester DST-3000
16.Karl Fischer Volumetric Water Content Titrator TPD
17.Distillation Range Tester DIL-201
18.Online Oil Quality Tester PTT-002
19.Copper Corrosion Tester TP-113
20.Dew Point Tester DPME-P
12.Cloud Point & Pour Point Tester PT-2000
13.Multi-functional Vibration Tester VBT-2000
14.Automatic Potentiometric Titrator TP668
15.Petroleum Products Density Tester DST-3000
16.Karl Fischer Volumetric Water Content Titrator TPD
17.Distillation Range Tester DIL-201
18.Online Oil Quality Tester PTT-002
19.Copper Corrosion Tester TP-113
20.Dew Point Tester DPME-P

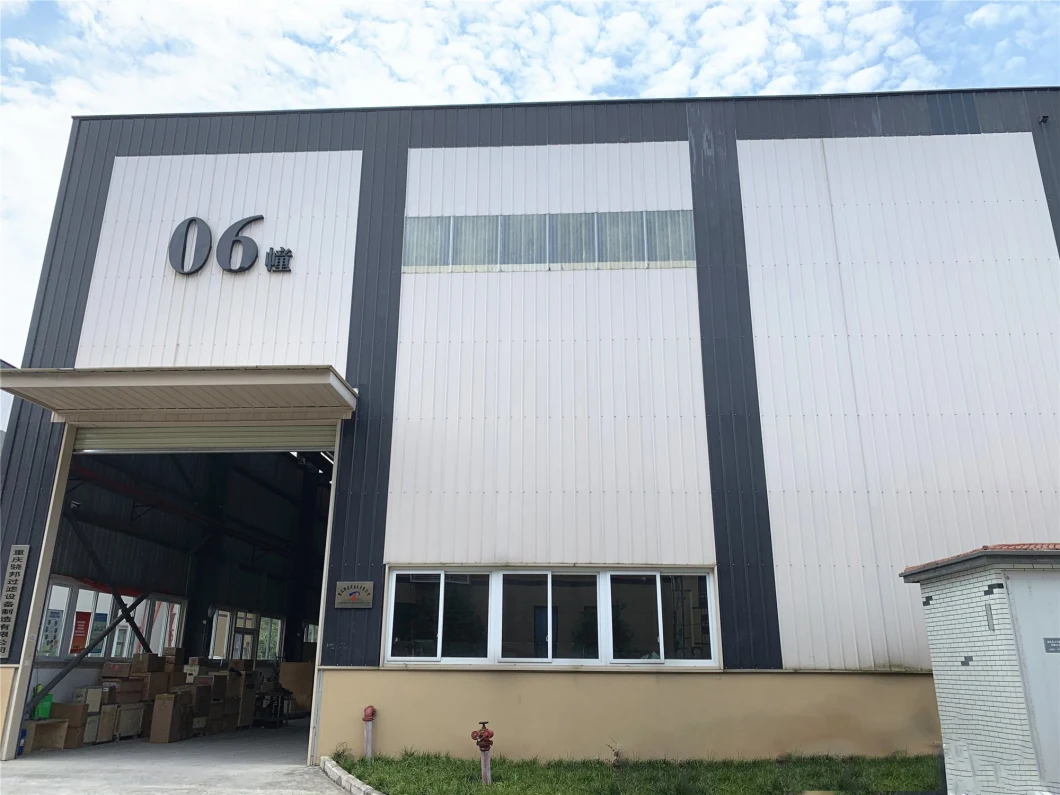

Company Introduction
