High conductivity high heat conduction type diode zp with heatsink

High Conductivity High Heat Conduction Type Diode Zp with Heatsink
High Conductivity High Heat Conduction Type Diode Zp with Heatsink

Rectifier diode,also named rectifying diode,include standard rectifier diode,power diode,fast recovery diode,high current diode.

We manufacture and export a wide range of rectifier diodes, current range from 500A-6500A, voltage range from 1000V-8000V.

We have an advantage in high voltage rectifier, high power rectifier diode.

With high quality, our diode not only is used on Chinese manufacturers but also exported standard diodes to all over the world.



Packaging & Shipping



Packing

High Conductivity High Heat Conduction Type Diode Zp with Heatsink

Our Advantages



Feature

Optimized for line frequency rectifiers

Low VF and narrow VF for parallel

Reverse voltage up to 8000V

Match Qrr  available for series



Application

1, High-power inversion 2, Welding equipment 3, Motor control and drive 4, Charging equipment


Product Parameters


Capsule

Part  No.IF(AV)VRRMIFSMI2 tVFOrF  TVJMRthJCRthCHFOutline
Tc=100ºC50HZ  TVJM50HZ  TVJM  TVJM  TVJM
AVAA2S.103VºCºC/WºC/WKN
Up to  1400
ZP500/01-14500100-140069002380.850.6801750.0900.0105D6
ZP1000/01-141000100-14001600012800.850.3501900.0550.0109D7
ZP1500/01-141500100-14002100022050.900.2001900.0350.00815D9
ZP2500/01-142500100-14003400057800.910.0501600.0200.00525D11
ZP4500/06-144500600-140054000145800.820.0551900.0130.00445D13
ZP6000/06-146000600-140074000273800.800.0401900.0100.00356D15
Up to  2200
ZP300/16-223001600-220052001350.851.1001500.0900.0105D6
ZP700/16-227001600-220098004800.820.3101500.0550.0109D7
ZP1000/16-2210001600-22001700014450.830.3201600.0350.00815D9
ZP2000/16-2220001600-22002700036450.820.1561600.0200.00525D11
ZP3200/16-2232001600-22004200088200.800.0901600.0130.00445D13
ZP4500/16-2245001600-220058000168200.880.0601700.0100.00356D15
ZP6000/16-2260001600-220071000252050.820.0461600.0070.00270D16
ZP7000/16-2270001600-220082000336200.800.0361600.0060.00290D17
Up to 3500
ZP600/25-356002500-350092004230.870.6101600.0550.0109D7
ZP900/25-359002500-3500135009110.880.4501600.0350.00815D9
ZP1800/25-3518002500-35002300026450.880.2001600.0200.00525D11
ZP3000/25-3530002500-35003500061250.840.1201700.0130.00445D13
ZP4000/25-3540002500-350047000110450.850.0851700.0100.03056D15
ZP5000/25-3550002500-350053000140450.830.0801600.0070.00270D16
ZP6500/25-3565002500-350075000281250.800.0551700.0060.00290D17
Up to 4500
ZP600/35-456003500-4500120007200.960.6001500.0350.00815D9

Part  No.IF(AV)VRRMIFSMI2 tVFOrF  TVJMRthJCRthCHFOutline
Tc=100ºC50HZ  TVJM50HZ  TVJM  TVJM  TVJM
AVAA2S.103VºCºC/WºC/WKN
ZP1200/35-4512003500-45001900018050.950.3001500.0200.00525D11
ZP2000/35-4520003500-45003000045000.960.1651500.0130.00445D13
ZP3000/35-4530003500-450048000115200.880.0851500.0100.00356D15
ZP3500/35-4535003500-450052000135201.000.0901500.0070.00270D16
ZP4500/35-4545003500-450062000192200.850.0851500.0060.00290D17
Up to 5200
ZP700/45-527004500-5200100005000.900.5001500.0350.00815D9
ZP1200/45-5212004500-52001700014450.930.3001500.0200.00525D11
ZP1800/45-5218004500-52002700036450.990.2301500.0130.00445D13
ZP2000/45-5220004500-52003000045001.000.2001500.0100.00356D14
ZP2500/45-5225004500-52004000080000.950.1501500.0100.00356D15
ZP3000/45-5230004500-52004400096801.000.1501500.0070.00270D16
ZP4000/45-5240004500-520055000151250.850.1101500.0060.00290D17
Up to 6500
ZP500/55-655005500-650080003200.950.9501500.0350.00815D9
ZP1000/55-6510005500-65001500011251.090.5001500.0200.00525D11
ZP1500/55-6515005500-65002300026451.000.3001500.0130.00445D13
ZP2000/55-6520005500-65002800039201.000.2001500.0100.00356D15
ZP2800/55-6528005500-65004000080001.100.1501500.0070.00270D16
ZP3500/55-6535005500-650046000105801.000.1201500.0060.00290D17
Up to 8000
ZP2500/65-8025006500-800045000101250.900.2001500.0070.00270D16
ZP3000/65-8030006500-800052000135200.950.2501500.0060.00290D17
  If need 35mm  please note outline H code        H:35mm

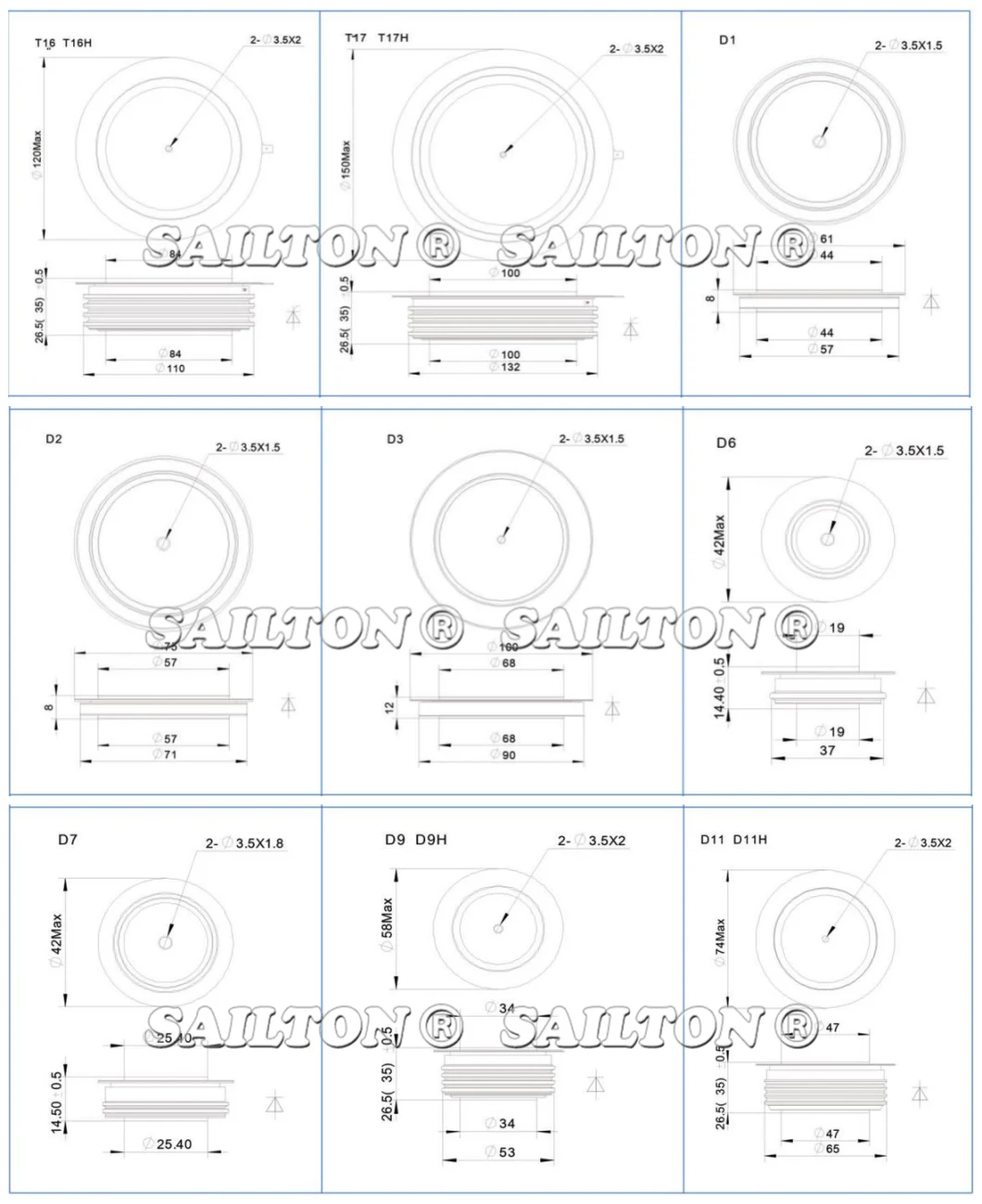

Outline
