High Precision Moisture Meter Sf6 Gas Analysis Dew Point Meter

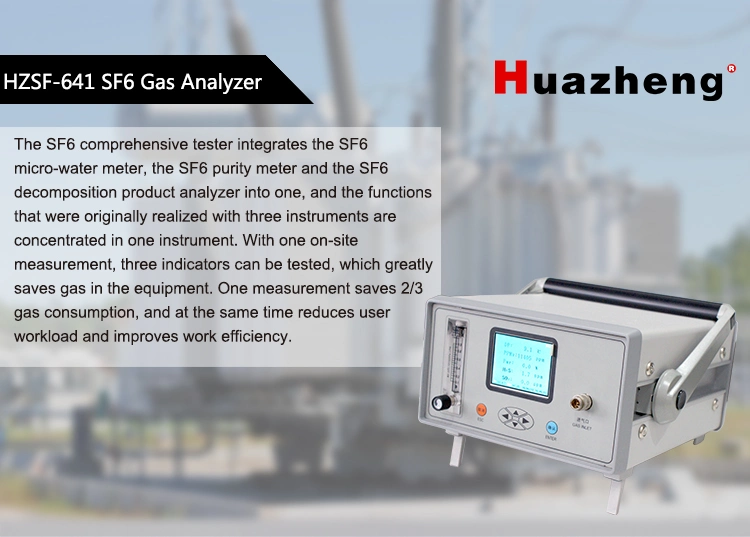

SF6 comprehensive tester combines the tests of humidity of SF6, purity of SF6 and it integrates the functions which were originally fulfilled by tow instruments into one instrument. One site measurement can fulfill the test of three targets. It greatly saves the gas in the equipment, reduces the work amount of the users and improve the work efficiency.
SF6 comprehensive tester enjoys the excellent capabilities because it fully adopts the best foreign sensor, Finnish Vaisala for humidity, the thermal conductivity sensor with temperature compensation for purity are the imported products. It adopts the LCD display with real-time display of all parameters. It enjoys the overall fool-operation and large storage of information. It has chargable batteries inside for either alternating or direct current.
II.Two Measurement Principle
The basic principle of ATSM902 Type SF6 tester for measuring purity is to define the contents according to the heat conducting rate of all gases. The heat conducting rate of SF6 is the lowest in the gas, so when the heat conducting rate of the background gas is basically kept stable, the heat conducting rate will be lower if the content of SF6 in the hybrid gas is higher. The density of SF6 can be tested according to it.
Relative heat conducting rates of normal gases (With the air at 120ºC as the reference)
|Component||Heat conducting rate||Component||Heat conducting rate|
The sensor components of the ATSM902 gas analyzer are equipped in a firm thermostatic chamber, and it guarantees that the sensor can steadily work in the adverse environment.
The hydrogen sensor component is a stainless steel structure with two same sensing components inside, sensing component for measurement and sensing component for reference. There is the thermal resistor with high reliability equipped in each sensor component. These corresponding thermal resistors form the measurement arm of the bridge type circuit, and the unbalanced current of the bridge type circuit can be adopted to measure the relative capability of the sampled gas conducting heat from the thermal resistor to the surface of the sensor component. One end of the sensor with the equipped thermal resistor is sealed and the sampled gas will extend to get in in order to reduce the influence of the flow change of the sampled gas to the minimum.
Humidity of SF6:
Measurement range:Dew point: -80~+20ºC(support ppmv and so on)
Precision of dew point:±0.5ºC
Resolution ratio:dew point 0.1ºC or 0.1ppm
Flow of gas:when measuring humidity:0.8~0.9L/min,when measuring purity:0.5~0.7L/min
The electric quality flow meter, the flow speed of the sample gas will not be influenced.
Probe protection:stainless steel sintered filter
Purity of SF6:
Range: 0~100% SF6;
Precision and repeatability: ±0.5%,have nothing to do with the flow;
SF6 decomposition products
Gas measurement range: H2S:1 ~ 200ppm
SO2:1 ~ 200ppm
CO:1 ~ 1000ppm
Sensitivity: 0.1 ppm
Work voltage: 220VAC±10% 50Hz,both alternating current and direct current, protection from over-charging, the continuous work time should not be less than 5 hours.
Storage temperature level: -40~+70ºC
Output interface: USB1.1 specification
Operation environment: temperature: -30~+60ºC
Flow speed of sample gas: without influence
Other allocation:management software of standard version, including the report printing and common shift tool bag of humidity
Weight :about 4.3kg
