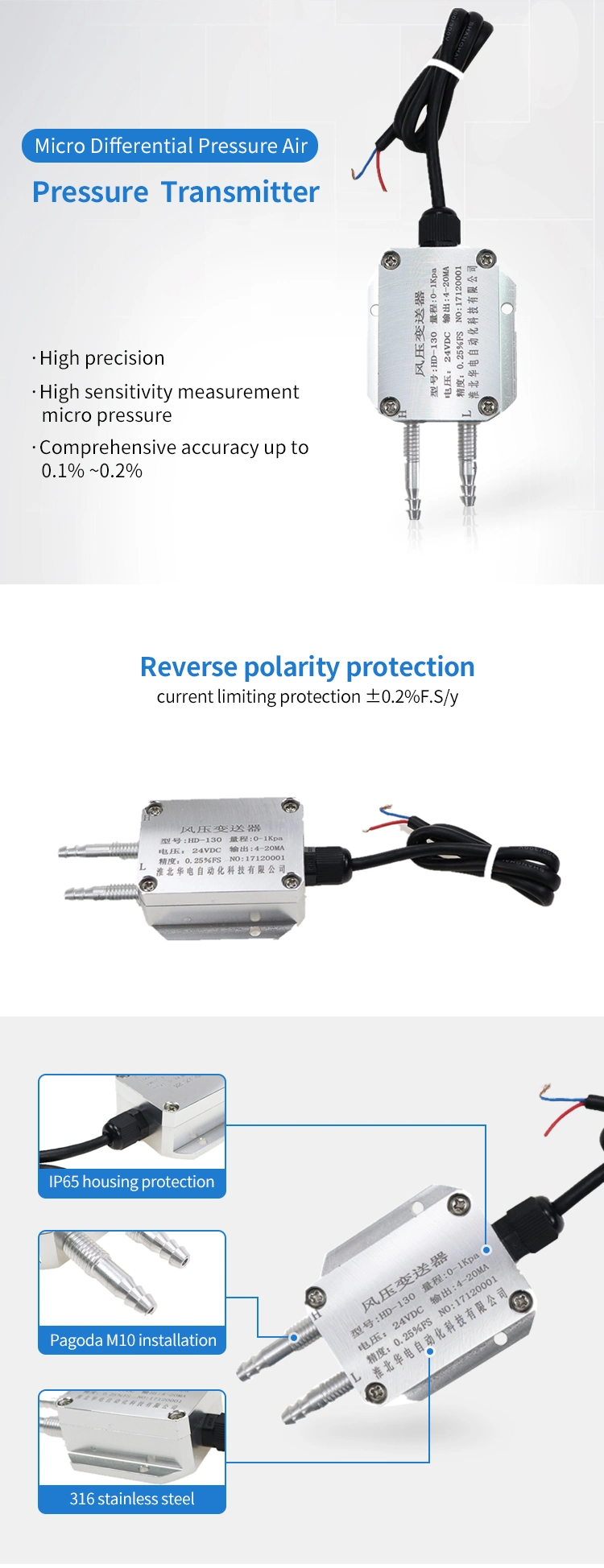

Micro RS485 differential air pressure transducer 4-20mA pressure sensor for gas

       HDP 701 micro differential pressure air pressure transmitter is composed of OEM silicon piezoresistive differential pressure core. The shell is made of aluminum alloy. The two pressure interfaces are M8 threaded and cock structures, which can be directly installed in the measuring pipeline or connected through the booster pipe and can accurately measure the pressure and differential pressure of the gas. It is widely used in the field of pressure process control in the power and coal industry, such as boiler air supply and underground ventilation.
     The long tube is the high-pressure input port and the short tube is the low-pressure input port. Measuring Pressure: Only Long tube Measuring differential pressure: high pressure to a long tube, low pressure to the short tube

Mainly Technical Parameters

Product nameMicro RS485 differential air pressure transducer 4-20mA pressure sensor for gas
Keywordsgas differential pressure transmitter
ModelHDP701
Powersupply24VDC
Outputsingle4~20mA,1~5V,0~10V,RS485
Warranty2 years
Measuring range -0.1...0...40kpa
Compensationtemperature -10~70ºC
Medium temperature -40~80ºC
Environment temperature -40~85ºC
Measuring media Gaseous
Pressure type Gauge pressure, Absolute pressure
Accuracy 0.1%F.S,0.25%F.S,0.5%F.S(standard)
Zerotempedrift ±0.03%F.S/ºC
Sensitivitytemperaturedrift ±0.03%F.S/ºC
Overload 200%F.S
Long-term stability ≤0.2%F.S/year
Inherentfrequency 5kHz~650kHz
Protection gradeIP65
Micro RS485 Differential Air Pressure Transducer 4-20mA Pressure Sensor for Gas
Micro RS485 Differential Air Pressure Transducer 4-20mA Pressure Sensor for Gas

Selection Table
Micro RS485 Differential Air Pressure Transducer 4-20mA Pressure Sensor for Gas

Wiring Diagram

Micro RS485 Differential Air Pressure Transducer 4-20mA Pressure Sensor for Gas
