Pressure Sensor Water Level Measurement 4-20mA RS485 MODBUS

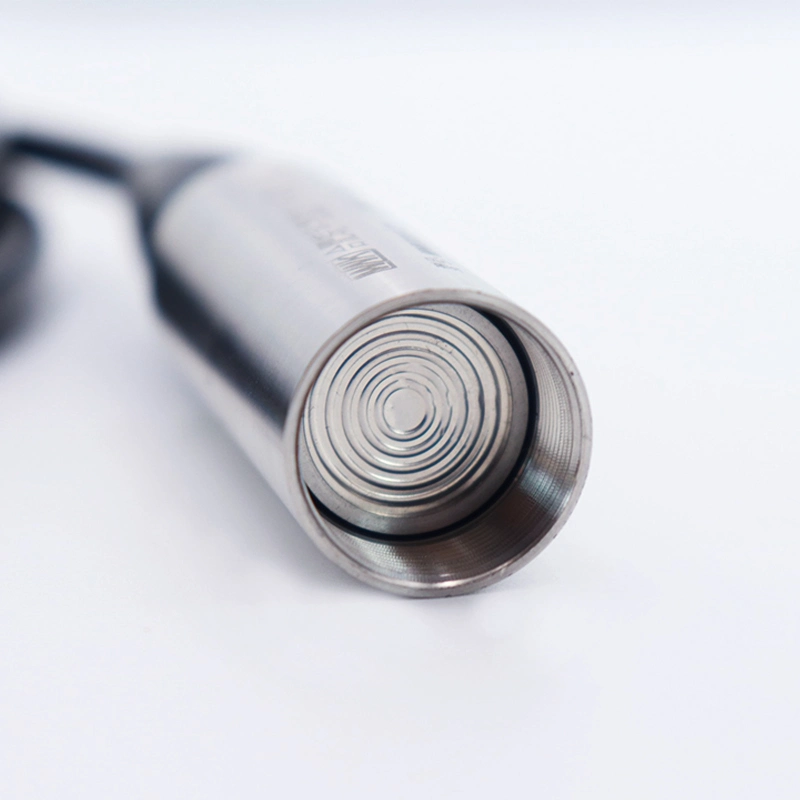

Product Details

Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus
Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus
Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus

Dimensional Drawing
Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus


Product Description

Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.


Specifications

Output 0.1-3.2V, 0-5V, 1-5V, 0.5-4.5V , customization
Level range0-5m H2O
Overload150% of sensor range
Measuring mediumLiquid
Accuracy±0.5%FS
Stability0.5%FS/ year
Housing materialStainless steel
Cable materialPolyvinyl Fluoride, PTFE
Power Supply3.3V, 5V dc
Ambient temperature-20~85ºC
Process temperature-20~85ºC
Compensation temperature-20~85ºC
Protection classIP68

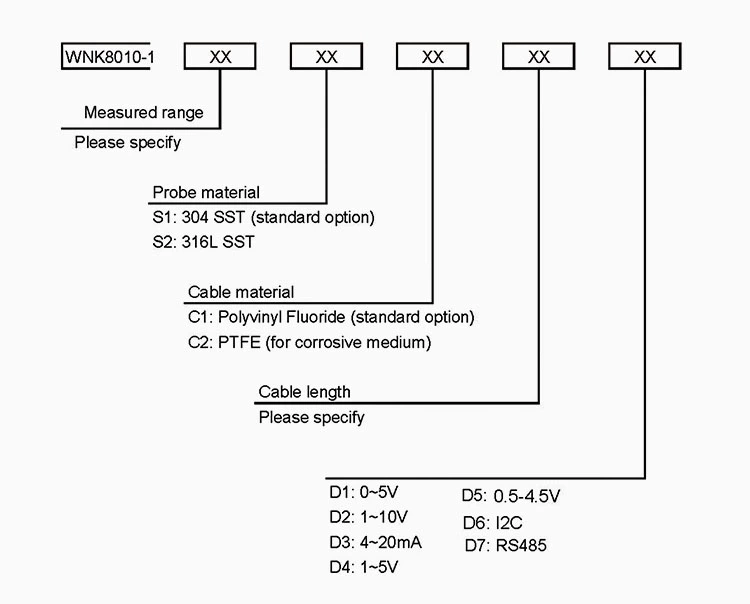

Ordering code

Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus


Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price



Company Information:

Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus



Factory

Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus



Exhibition

Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus



Certificates

Pressure Sensor Water Level Measurement 4-20mA RS485 Modbus



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What's your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
