Salinity Measurement Sensor For Water Treatment
Summary

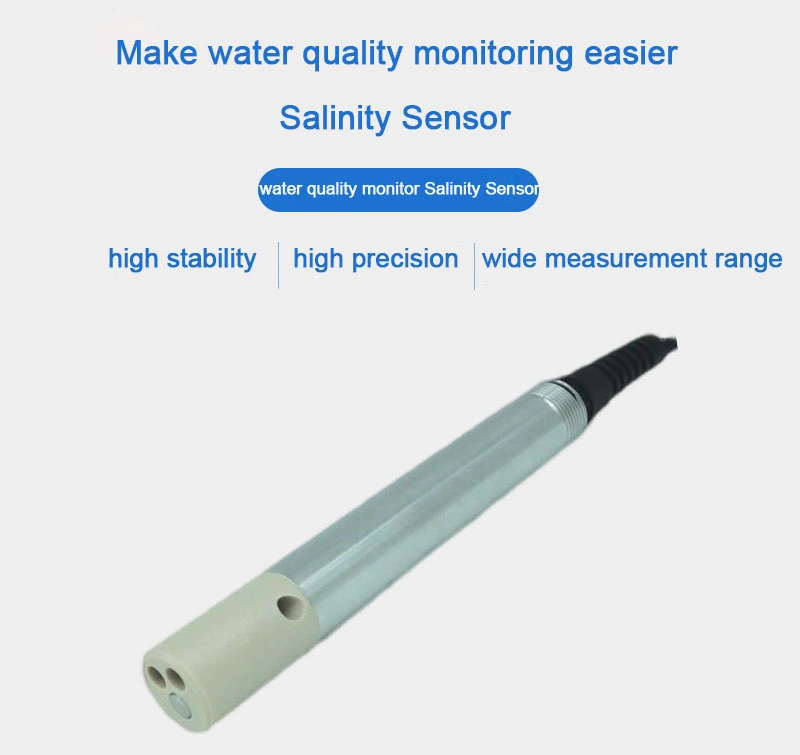

Water Salinity Sensor adopts the world's leading four-electrode technology, RS485 digital interface, supports MODBUS protocol, and is environmentally friendly design. The new generation of salinity sensor not only has higher accuracy, wider measuring range and stronger stability. It also has unique advantages of large quantity: first, it completely solves the polarization problem in high conductivity test; second, it solves the problem of inaccurate reading caused by electrode contamination.

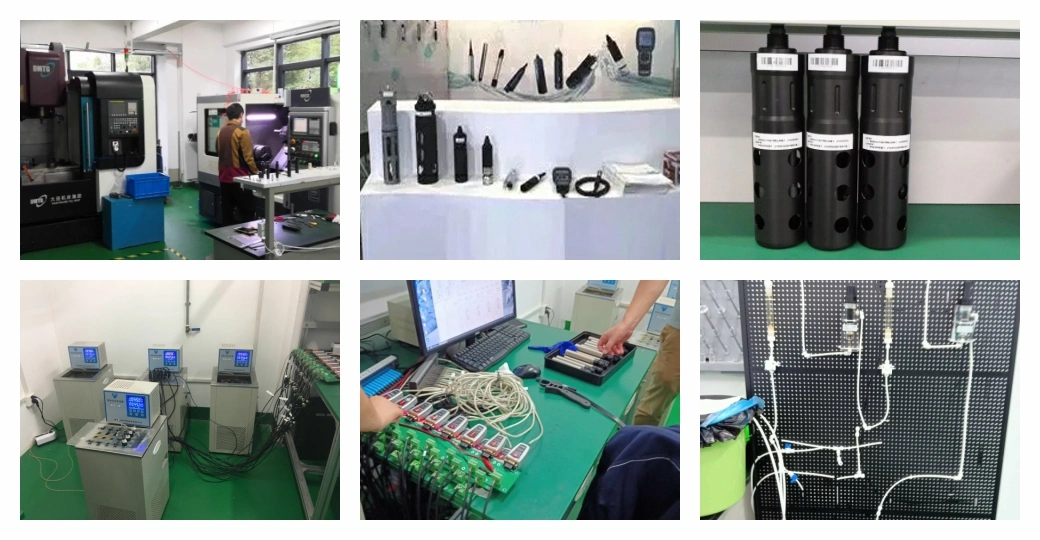

Workshop
Summary
Water Salinity Sensor adopts the world's leading four-electrode technology, RS485 digital interface, supports MODBUS protocol, and is environmentally friendly design. The new generation of salinity sensor not only has higher accuracy, wider measuring range and stronger stability. It also has unique advantages of large quantity: first, it completely solves the polarization problem in high conductivity test; second, it solves the problem of inaccurate reading caused by electrode contamination.
Features of salinity sensor
0~80ppt, accuracy ±1ppt
RS485 output, support Modbus, and open communication protocol
0~50ºC, protection class IP68, maximum pressure 6bar
Will not be polarized and can be used continuously online5
The measuring range is extremely wide and the application is wider6
Very resistant to pollution and strong anti-interference ability
The measurement is very stable and the accuracy is higher
Product parameters
| Name | Parameter |
| Model | DG-Y520-A |
| Range | 0~80 ppt |
| Response time | <10 sec |
| IP rating | IP68 |
| Salinity accuracy | ±1 ppt |
| Electrode material | Nickel+316L/Ta2 |
| Body Material | PEEK |
| Operating Temperature | 0 ~ 50ºC |
| Output | Modbus RS-485 |
| Power Consumption | DC 5~12V ,I<50mA |
| Temperature Sensor | NTC |
| Dimension | Φ22*210 mm |
| Cable length | 10m (default),custom length available |
| Calibration | One point or two-points |
Workshop
Application
