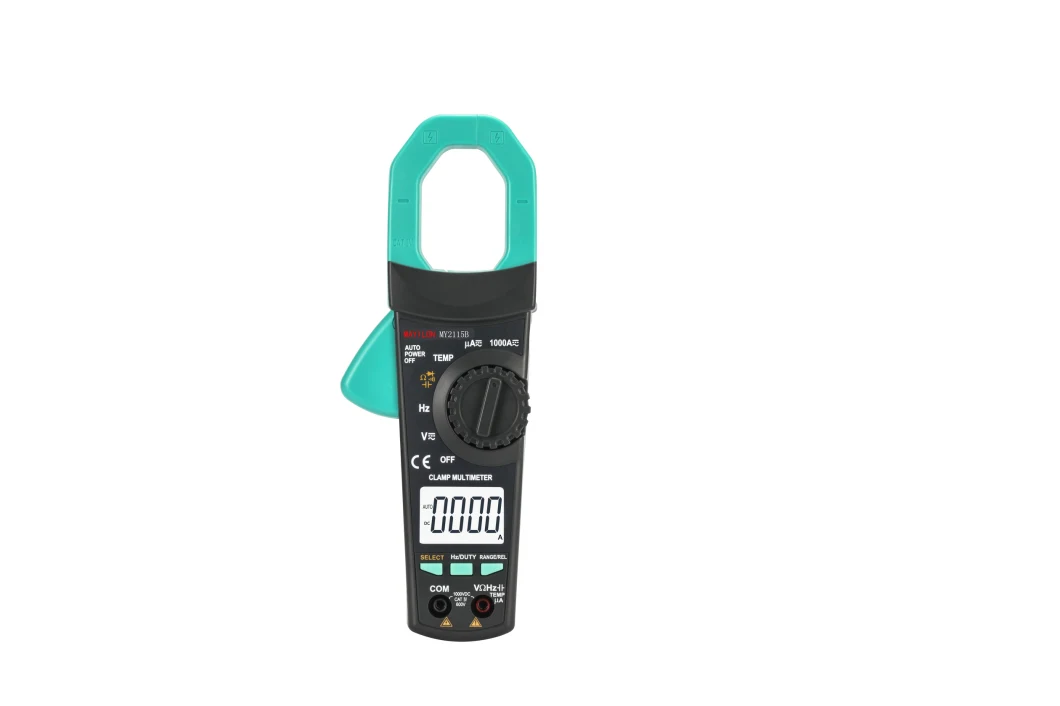

True RMS Digital AC Clamp Meter Pocket Size
| specifications | range | accuracy | |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+3) | |
| AC Voltage | 600mV/6V/60V/600V/750V | ±(0.8%+5) | |
| DC Current | 600uA/6mA | ±(0.8%+10) | |
| 60A/600A/1000A | ±(2.0%+30) | ||
| AC Current | 600uA/6mA | ±(1.0%+8) | |
| 60A/600A/1000A | ±(2.0%+30) | ||
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+5) | |
| Capacitance | 99.99/999.9nF/9.999uF/99.99uF/999.9uF | ±(2.5%+60) | |
| 9.999mF | ±(5.0%+10) | ||
| 99.99mF | ±(10%+5) | ||
| Frequency | 10Hz ~10MHz | ±(0.01%+5) | |
| Duty | 1%~99% | ||
| Temperature(ºC/°F) | -40ºC~1000ºC | ±(1.2%+3) | |
| -4°F~1832°F | ±(1.2%+4) | ||
| T-RMS | √ | ||
| range | Auto/manual | ||
| Frequency response | √ | ||
| Diode test | √ | ||
| On-off test | √ | ||
| Data hold | √ | ||
| Backlight | √ | ||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| Power | 2*AA(1.5V)batteries | ||
| Weight | Approx.325g | ||
| Size | 236mm*88mm*45mm | ||
| Safety rating | CAT III 1000V,CAT IV 600V | ||
